Drain Fuel Composite Hose Pipe Fittings Dixon Danoil Discharge Hose

Hongruntong Marine (Beijing) Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Drain Fuel Composite Hose Pipe Fittings Dixon Danoil Discharge Hose from wholesalers

    Buy cheap Drain Fuel Composite Hose Pipe Fittings Dixon Danoil Discharge Hose from wholesalers
    • Buy cheap Drain Fuel Composite Hose Pipe Fittings Dixon Danoil Discharge Hose from wholesalers
    • Buy cheap Drain Fuel Composite Hose Pipe Fittings Dixon Danoil Discharge Hose from wholesalers
    • Buy cheap Drain Fuel Composite Hose Pipe Fittings Dixon Danoil Discharge Hose from wholesalers
    • Buy cheap Drain Fuel Composite Hose Pipe Fittings Dixon Danoil Discharge Hose from wholesalers

    Drain Fuel Composite Hose Pipe Fittings Dixon Danoil Discharge Hose

    Ask Lasest Price
    Brand Name : Hongruntong Marine
    Model Number : HM-CHP120
    Certification : EN13766 & EN13765
    Price : $95-$360
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2060 Pcs Per Month
    Delivery Time : 5-7 Work Days
    • Product Details
    • Company Profile

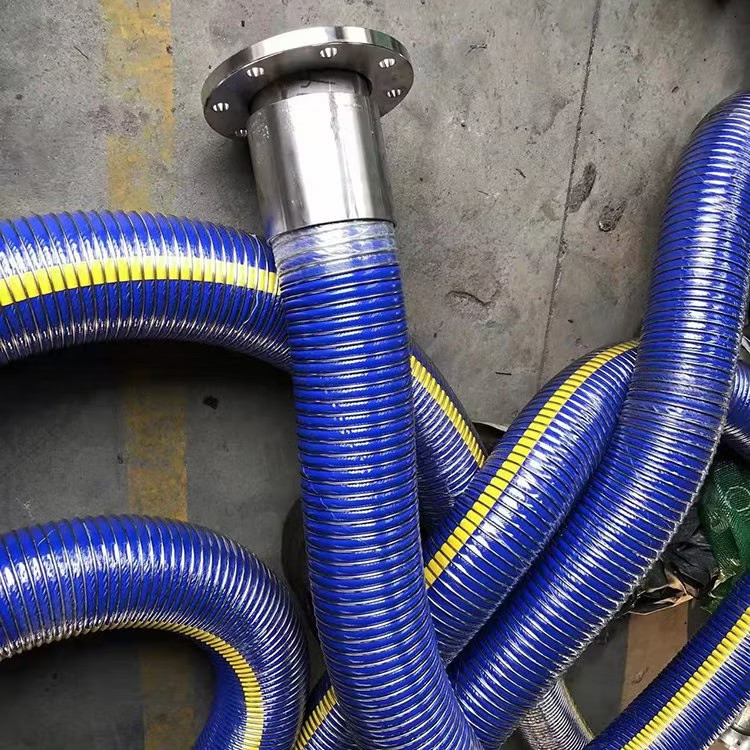

    Drain Fuel Composite Hose Pipe Fittings Dixon Danoil Discharge Hose

    Durable Composite Hoses for Versatile Fluid Transfer

    Dixon Danoil Composite Discharge Hose Drain Fuel Hose Pipe Fittings


    Designed for maximum efficiency and safety, our composite hoses are the ideal solution for transferring a wide variety of fluids in challenging industrial and marine environments. Whether you're dealing with aggressive chemicals, high-pressure liquids, or sensitive fuels, our composite hoses provide long-lasting performance with superior flexibility and resistance.


    Product NameComposite Hose Pipe
    Inner Wire & Outer Wire

    Stainless Steel 316

    Stainless Steel 304

    Galvanised Carbon Steel

    Polypropylene Coated Steel

    Aluminium

    Inside Lining

    Polypropylene

    P.T.F.E / E.C.T.F.E

    Poly-amide

    Layers

    Polypropylene Fabrics

    Polypropylene Films

    Poly-amide Fabrics

    Poly-amide Films

    Polyester Fabrics

    Polyester Films

    BOPP Films

    Outer Cover

    PVC Coated Polyester

    Poly-amide

    Polypropylene

    P.T.F.E

    Max. Elongation10% on proof pressure
    Min. Burst Pressure5 x working pressure (Safety factor 5:1)
    Temperature Range-30℃ to +100℃
    Electrical Resistance

    ≤2.5 Ohm/m for under 50mm (2”)

    ≤1.0 Ohm/m for over 50mm (2”)

    OEM, ODMAccept
    StandardEN13766, EN13765

    Drain Fuel Composite Hose Pipe Fittings Dixon Danoil Discharge HoseDrain Fuel Composite Hose Pipe Fittings Dixon Danoil Discharge HoseDrain Fuel Composite Hose Pipe Fittings Dixon Danoil Discharge HoseDrain Fuel Composite Hose Pipe Fittings Dixon Danoil Discharge Hose


    ModelDimensionsWorking PressureSafety FactorBending RadiusWeightLength
    Composite[mm][inch][bar][psi][kg][m]
    HM-CHP20203/4"162305:1800.840
    HM-CHP25251"162305:1100140
    HM-CHP323211/4"162305:11251.340
    HM-CHP404011/2"162305:11401.540
    HM-CHP50502"162305:11802.540
    HM-CHP656521/2"162305:12003.340
    HM-CHP80803"162305:1260440
    HM-CHP1001004"162305:13806.840
    HM-CHP1251255"162305:14409.240
    HM-CHP1501506"162305:150013.240
    HM-CHP2002008"162305:17501840
    HM-CHP25025010"162305:19002625
    *Note: Various sizes can be customized according to the requirements.

    Drain Fuel Composite Hose Pipe Fittings Dixon Danoil Discharge Hose


    FAQ


    1. What type of fluid will be transferred with the hose?
    Answer: The hose will be used for transferring marine fuel.


    2. What temperature range should the hose withstand?
    Answer: The hose needs to operate between -10°C and 80°C.


    3. What pressure and vacuum ratings should the hose support?
    Answer: The hose should withstand 20 bar pressure and a vacuum of 0.9 bar.


    4. Do you require specific fittings for installation?
    Answer: Yes, we need the hose to have flanged ends for secure installation.
