High-Performance Composite Hoses for Reliable Fluid Transfer
Composite Hose Composite Chemical Cargo Hose Hs Hsn Code Willcox

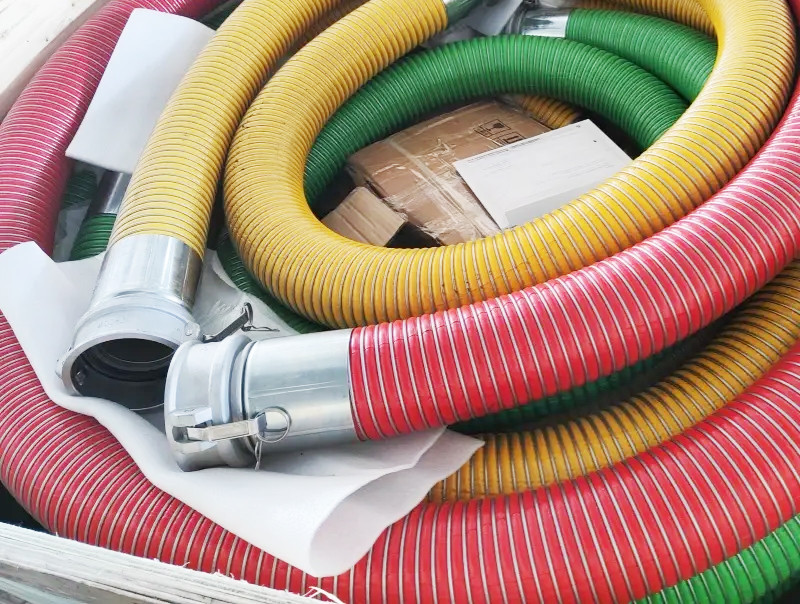

Composite Hose Catalog
Our composite hoses are meticulously crafted to ensure safe,
efficient, and reliable fluid transfer across a wide range of
industries. Designed for use in harsh environments, these hoses
offer superior flexibility, durability, and resistance to
chemicals, pressure, and extreme temperatures. Whether used in
marine, chemical, or industrial applications, our composite hoses
provide peace of mind, knowing your operations are backed by
high-performance products.
| Product Name | Composite Hose Pipe |
| Inner Wire & Outer Wire | Stainless Steel 316 Stainless Steel 304 Galvanised Carbon Steel Polypropylene Coated Steel Aluminium |
| Inside Lining | Polypropylene P.T.F.E / E.C.T.F.E Poly-amide |
| Layers | Polypropylene Fabrics Polypropylene Films Poly-amide Fabrics Poly-amide Films Polyester Fabrics Polyester Films BOPP Films |
| Outer Cover | PVC Coated Polyester Poly-amide Polypropylene P.T.F.E |
| Max. Elongation | 10% on proof pressure |
| Min. Burst Pressure | 5 x working pressure (Safety factor 5:1) |
| Temperature Range | -30℃ to +100℃ |
| Electrical Resistance | ≤2.5 Ohm/m for under 50mm (2”) ≤1.0 Ohm/m for over 50mm (2”) |
| OEM, ODM | Accept |
| Standard | EN13766, EN13765 |
Product Highlights
Advanced Layered Construction
Featuring multiple layers of high-strength materials, our composite
hoses offer exceptional durability and performance. The inner layer
is engineered to be resistant to a wide range of chemicals, while
the outer layer provides protection against physical damage,
ensuring a long-lasting and robust hose.
Chemical Compatibility
These hoses are ideal for transferring a broad spectrum of
chemicals, oils, and gases, with materials like PTFE and
polypropylene offering unmatched chemical resistance. Our hoses are
designed to keep the integrity of your fluids intact, preventing
contamination and minimizing risk.
Outstanding Flexibility and Lightweight Design
Our hoses are highly flexible, making them easy to handle, install,
and maneuver in confined or challenging spaces. Despite their
robust construction, they remain lightweight, allowing for ease of
operation and reduced physical strain during use.
Pressure and Temperature Resistance
Engineered to withstand high pressure and temperature extremes, our
composite hoses are reliable even in the most demanding conditions.
Whether you are working in freezing temperatures or high heat,
these hoses perform consistently and safely.
Custom Solutions for Every Need
We offer fully customizable solutions to meet the specific
requirements of your operation. From hose length and diameter to
pressure rating and end fittings, we ensure each hose is tailored
to your precise needs, offering you the perfect solution for any
application.
Applications
► Marine and Offshore Fuel Transfer
► Chemical Transport and Processing
► Oil and Gas Industry Operations
► Industrial Fluid Handling
► Aviation Fueling
| Model | Dimensions | Working Pressure | Safety Factor | Bending Radius | Weight | Length |
| Composite | [mm] | [inch] | [bar] | [psi] | [kg] | [m] |
| HM-CHP20 | 20 | 3/4" | 16 | 230 | 5:1 | 80 | 0.8 | 40 |
| HM-CHP25 | 25 | 1" | 16 | 230 | 5:1 | 100 | 1 | 40 |
| HM-CHP32 | 32 | 11/4" | 16 | 230 | 5:1 | 125 | 1.3 | 40 |
| HM-CHP40 | 40 | 11/2" | 16 | 230 | 5:1 | 140 | 1.5 | 40 |
| HM-CHP50 | 50 | 2" | 16 | 230 | 5:1 | 180 | 2.5 | 40 |
| HM-CHP65 | 65 | 21/2" | 16 | 230 | 5:1 | 200 | 3.3 | 40 |
| HM-CHP80 | 80 | 3" | 16 | 230 | 5:1 | 260 | 4 | 40 |
| HM-CHP100 | 100 | 4" | 16 | 230 | 5:1 | 380 | 6.8 | 40 |
| HM-CHP125 | 125 | 5" | 16 | 230 | 5:1 | 440 | 9.2 | 40 |
| HM-CHP150 | 150 | 6" | 16 | 230 | 5:1 | 500 | 13.2 | 40 |
| HM-CHP200 | 200 | 8" | 16 | 230 | 5:1 | 750 | 18 | 40 |
| HM-CHP250 | 250 | 10" | 16 | 230 | 5:1 | 900 | 26 | 25 |
| *Note: Various sizes can be customized according to the
requirements. |
FAQ
Q1: Are you a factory or trading company?
A1: We are a professional factory, with more than 35 years'
experience on producing rubber hoses, silicone hoses.
Q2: Where is your factory located? How can I visit there?
A2: Our factory is located in Beijing, China. All our clients are
warmly welcome to visit us from home or abroad and and we offer
free hotel and free car.
Q3: How does your factory do regarding quality control?
A3: Quality is priority. Jinhu people always put much importance on
quality controlling from the beginning to the end. Our factory has
passed ISO, SGS, ROHS certification.
Q4: How can we guarantee quality?
A4: Always a pre-production sample before mass production; Always
final Inspection before shipment.
Q5: What should I do if I find quality problem in using?
A5: 24 months Quality Guarantee for all of our products. We offer
replacement for any defective caused by non-human reasons.
