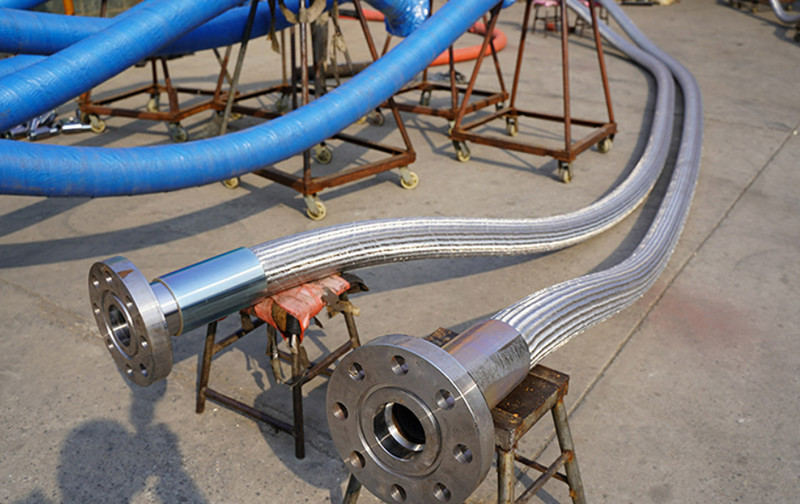

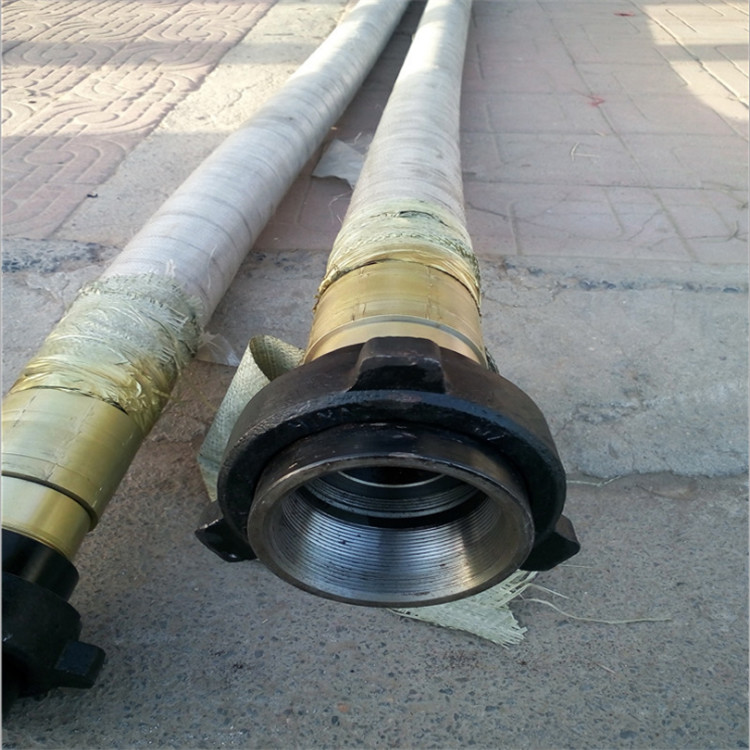

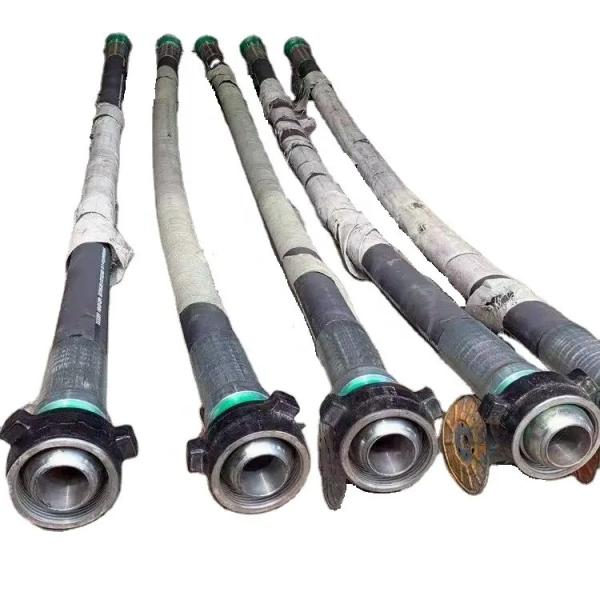

Hydraulic Rotary Hose In Drilling Rig Rotary Drill Hose System In
Drilling Rig
As a product of Hongruntong Marine, with 34 years of manufacturing
expertise, the Rotary Drilling Hose exemplifies durability,
performance, and reliability in demanding drilling environments.
Engineered to handle high-pressure drilling fluids like mud,
cement, and water, this hose is designed for tough applications in
the oilfield, geothermal, and water well industries.
| Tube | Modified nitrile, black, specifically engineered for the effective
handling of abrasive, corrosive substances, and oil drilling mud. |
| Reinforcement | Composite construction featuring multiple layers of textile fabric
and steel cable, with a layer of rubber positioned between the
cable layers for enhanced performance. |
| Cover | Black modified nitrile with a specially engineered ultra-abrasion
cover, designed to provide exceptional resistance to abrasion,
corrosion, cutting, gouging, oil, and weather conditions. |
| Coupling | Swaged couplings,full range of couplings are available,such as
hammer union,flanges,hubs,male thread etc |
| Certification | API 7K-0376/ISO14693 |
| Temperature | -40°C to +82°C( -104°F to +180°F) |
| Options | Accessories such as safety clamps and hose lift eyes are available
upon request |
| Test | Each hose is tested at 22500psi for 15 minutes. Pressure test
graph, test certificate and letter of conformance are issued for
each hose. |
Key Features:
Expertly Crafted Materials
Made from premium-grade rubber with multi-layer steel wire
reinforcement, the hose offers superior resistance to abrasion,
tension, and harsh chemicals.
High-Pressure Capability
Built to handle extreme pressures and high flow rates, ensuring
consistent fluid delivery in critical operations.
Weather and Temperature Resilience
Engineered to perform in extreme temperatures and harsh
environmental conditions, maintaining its integrity over time.
Flexible and Reliable Design
Combines flexibility for easy installation with robust construction
to withstand demanding operational pressures.
Applications:
► Oil and Gas Exploration: Facilitates efficient fluid transfer in both offshore and onshore
drilling rigs.
► Geothermal Energy: Handles high-temperature fluids required for geothermal drilling
projects.
► Water Well Drilling: Ensures reliable delivery of water and drilling fluids during well
construction.
Why Choose Hongruntong Marine’s Rotary Drilling Hose?
● 34 Years of Expertise: Proven track record in delivering high-quality, durable products
tailored to industry needs.
● Customized Solutions: Available in various sizes, pressure ratings, and end fittings to
meet specific project demands.
● Reliable Performance: Designed to meet or exceed international safety and quality
standards for drilling operations.
| Model | I.D. | O.D. | W.P. | T.P. | Weight | B.R. |
| inch | mm | mm | mpa(psi) | mpa(psi) | kg／m | mm |
| HMRDH-Grade A | 1 1/2 | 38 | 51 | 11(1500) | 22(3000) | 2.19 | 560 |
| 2 | 51 | 65 | 11(1500) | 22(3000) | 3.03 | 900 |
| 2 1/2 | 64 | 78 | 11(1500) | 22(3000) | 3.95 | 1200 |
| HMRDH-Grade B | 1 1/2 | 38 | 52 | 14(2000) | 28(4000) | 2.39 | 560 |
| 2 | 51 | 66 | 14(2000) | 28(4000) | 3.25 | 900 |
| 2 1/2 | 64 | 79 | 14(2000) | 28(4000) | 4.37 | 1200 |
| 3 | 76 | 98 | 14(2000) | 28(4000) | 7.76 | 1200 |
| 3 1/2 | 89 | 113 | 14(2000) | 28(4000) | 9.95 | 1300 |
| 4 | 102 | 127 | 14(2000) | 28(4000) | 12.43 | 1400 |
| 5 | 127 | 153 | 14(2000) | 28(4000) | 15.25 | 1500 |
| 6 | 152 | 178 | 14(2000) | 28(4000) | 18.71 | 1600 |
| HMRDH-Grade C | 1 1/2 | 38 | 55 | 28(4000) | 56(8000) | 3.65 | 560 |
| 2 | 51 | 69 | 28(4000) | 56(8000) | 5.15 | 900 |
| 2 1/2 | 64 | 88 | 28(4000) | 56{8000) | 7.86 | 1200 |
| 3 | 76 | 105 | 28(4000) | 56(8000) | 13.12 | 1200 |
| 3 1/2 | 89 | 121 | 28(4000) | 56(8000) | 16.79 | 1300 |
| 4 | 102 | 137 | 28(4000) | 56(8000) | 21.70 | 1400 |
| 5 | 127 | 164 | 28(4000) | 56(8000) | 28.46 | 1500 |
| 6 | 152 | 197 | 28(4000) | 56(8000) | 44.64 | 1600 |
| HMRDH-Grade D | 2 | 51 | 73 | 25(5000) | 70(10000) | 6.46 | 900 |
| 2 1/2 | 64 | 91 | 35(5000) | 70(10000) | 10.75 | 1200 |
| 3 | 76 | 107 | 35(5000) | 70(10000) | 14.35 | 1200 |
| 3 1/2 | 89 | 123 | 35(5000) | 70(10000) | 18.77 | 1300 |
| 4 | 102 | 139 | 35(5000) | 70(10000) | 23.16 | 1400 |
| 5 | 127 | 171 | 35(5000) | 70(10000) | 38.00 | 1500 |
| 6 | 152 | 200 | 35(5000) | 70(10000) | 48.43 | 1600 |
| HMRDH-Grade E | 2 | 51 | 80 | 52(7500) | 104(15000) | 10.37 | 1000 |
| 2 1/2 | 64 | 101 | 52(7500) | 104(15000) | 17.88 | 1200 |
| 3 | 76 | 120 | 52(7500) | 104(15000) | 24.45 | 1200 |
| 3 1/2 | 89 | 135 | 52(7500) | 104(15000) | 29.33 | 1300 |
| 4 | 102 | 148 | 52(7500) | 104(15000) | 34.24 | 1400 |
| 5 | 127 | 189 | 52(7500) | 104(15000) | 55.39 | 1500 |
| HMRDH-Grade F | 2 | 51 | 82 | 70(10000) | 105(15000) | 11.81 | 1OOO |
| 2 1/2 | 64 | 104 | 70(10000) | 105(15000) | 20.46 | 1300 |
| 3 | 76 | 129 | 70(10000) | 105(15000) | 32.74 | 1300 |
| 3 1/2 | 89 | 144 | 70(10000) | 105(15000) | 39.43 | 1400 |
| 4 | 102 | 158 | 70(10000) | 105(15000) | 45.73 | 1500 |
| HMRDH-Grade G | 2 | 51 | 92 | 105(15000) | 157(22500) | 17.37 | 1000 |
