API 7k API 17K Rotary Drilling Hose Drilling Rig Work Process
Rotary Drilling System

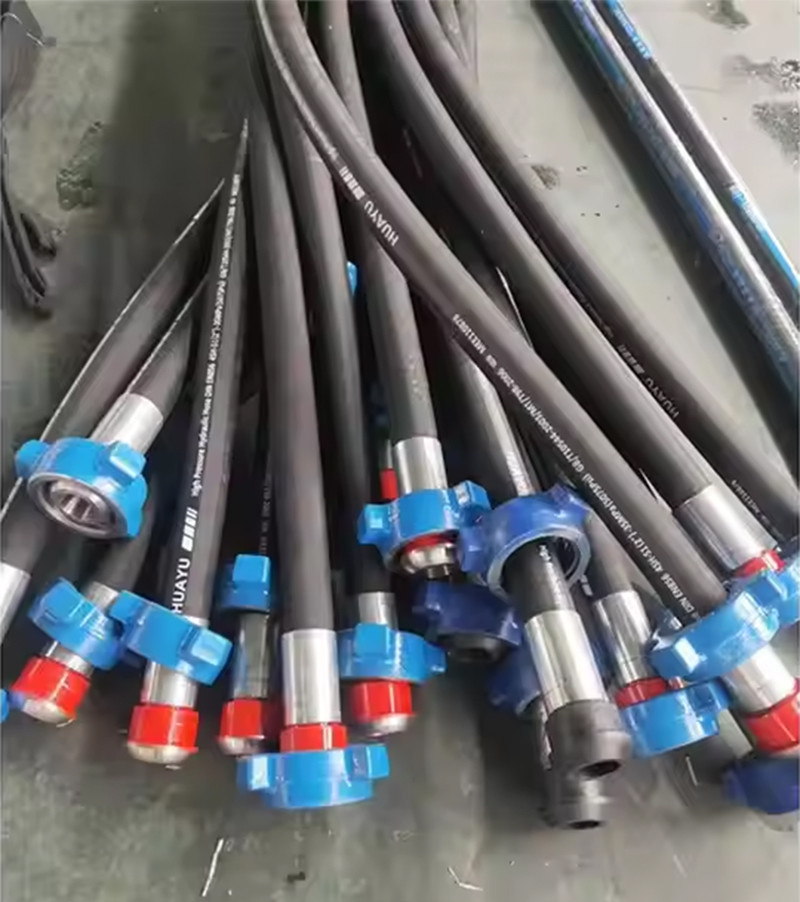

Hongruntong Marine Rotary Drilling Hose
Key Benefits at a Glance:
● Built for Extreme Pressure: Can handle working pressures up to 15,000 psi—ideal for
high-pressure rotary drilling and circulation.
● High Flexibility in Tough Environments: Despite its tough construction, the hose remains flexible,
ensuring easy handling and installation in confined spaces.
● Resistant to Harsh Fluids & Chemicals: Specially designed to resist drilling mud, crude oil, solvents,
and other harsh chemicals.
● Durable in All Weather: The EPDM cover withstands UV rays, ozone, and extreme
temperatures, ensuring the hose is tough against weathering and
abrasion.
Design & Composition
The Rotary Drilling Hose is engineered to stand up to the rigorous
demands of the oil and gas industry, where reliability is
paramount. Our advanced multi-layer construction incorporates
high-quality materials to provide exceptional performance:
● Inner Liner:
Material: Oil-resistant synthetic rubber
Purpose: Smooth, efficient flow of drilling fluids, resistant to
corrosion and wear from harsh substances like drilling mud and
crude oil.
● Reinforcement:
Material: High-tensile textile cords and steel wire helix
Purpose: Provides strength to the hose, handling high pressures and
absorbing the mechanical stress generated by rotary drilling and
movement. The helix wire prevents kinking and helps with
flexibility.
● Outer Cover:
Material: EPDM (Ethylene Propylene Diene Monomer)
Purpose: Offers resistance to external wear, including abrasion,
ozone, UV rays, and extreme environmental conditions. The durable
outer cover keeps the hose protected during extended use.
Key Applications

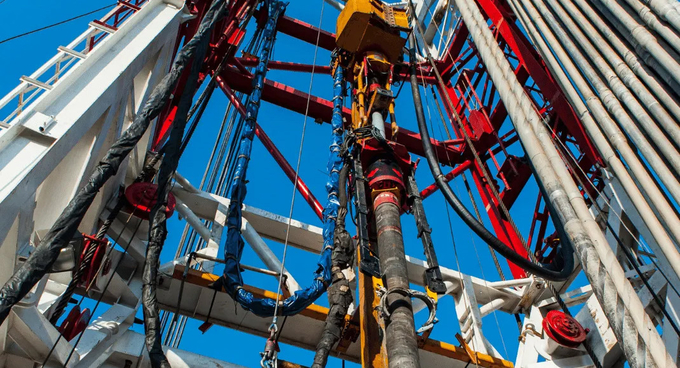

● Drilling Operations: Used to transport drilling fluids, mud, and slurries to and from
the wellbore, maintaining pressure and flow in high-intensity
conditions.
● Offshore Platforms: Designed to withstand the demanding conditions of offshore
drilling, handling both high-pressure fluids and rough weather
conditions.
● Cementing: Ideal for transporting cement slurries during casing jobs,
ensuring the structural integrity of wells by enabling efficient
cementing.
● Mud Circulation Systems: Facilitates the continuous circulation of drilling mud and cools
the drill bit, stabilizing the wellbore and ensuring efficient
cutting removal.
Why Choose Hongruntong’s Rotary Drilling Hose?
● Unmatched Durability: Tested in some of the toughest drilling environments, our hoses
are built to last under high pressure, harsh chemicals, and extreme
mechanical stress.
● Flexible Customization: Available in a range of sizes, pressure ratings, and lengths,
tailored to your specific operational needs—whether deepwater
drilling or land-based exploration.
● Proven Expertise: With more than 34 years of experience in marine and industrial
hose manufacturing, we understand the unique challenges of drilling
operations and deliver products that exceed expectations.
● Safety-Focused Design: Our hoses are built with safety as a priority, meeting industry
standards to minimize the risk of failure in high-pressure,
high-stress situations.
What Sets Us Apart?
● End-to-End Support: From hose selection to installation, we provide expert guidance
and after-sales support to ensure your operation runs smoothly and
safely.
● Rigorous Testing & Quality Assurance: Each hose undergoes comprehensive testing, including pressure,
flexibility, and chemical resistance checks, ensuring that it meets
the highest standards of performance and safety.
● Reliable, Long-Term Performance: Our hoses are engineered to handle continuous operation in
high-demand environments, reducing downtime and maintenance costs
in the field.
Conclusion
When it comes to rotary drilling operations, you need equipment
that can handle high-pressure fluids and withstand tough, abrasive
conditions. The Rotary Drilling Hose from Hongruntong Marine
delivers just that. Engineered for durability, flexibility, and
reliability, it ensures your operations are efficient, safe, and
capable of tackling the harshest environments with confidence.
Specifications
| Tube | Modified nitrile, black, specifically engineered for the effective
handling of abrasive, corrosive substances, and oil drilling mud. |
| Reinforcement | Composite construction featuring multiple layers of textile fabric
and steel cable, with a layer of rubber positioned between the
cable layers for enhanced performance. |
| Cover | Black modified nitrile with a specially engineered ultra-abrasion
cover, designed to provide exceptional resistance to abrasion,
corrosion, cutting, gouging, oil, and weather conditions. |
| Coupling | Swaged couplings,full range of couplings are available,such as
hammer union,flanges,hubs,male thread etc |
| Certification | API 7K-0376/ISO14693 |
| Temperature | -40°C to +82°C( -104°F to +180°F) |
| Options | Accessories such as safety clamps and hose lift eyes are available
upon request |
| Test | Each hose is tested at 22500psi for 15 minutes. Pressure test
graph, test certificate and letter of conformance are issued for
each hose. |
Dimensions
| Model | I.D. | O.D. | W.P. | T.P. | Weight | B.R. |
| inch | mm | mm | mpa(psi) | mpa(psi) | kg／m | mm |
| HMRDH-Grade A | 1 1/2 | 38 | 51 | 11(1500) | 22(3000) | 2.19 | 560 |
| 2 | 51 | 65 | 11(1500) | 22(3000) | 3.03 | 900 |
| 2 1/2 | 64 | 78 | 11(1500) | 22(3000) | 3.95 | 1200 |
| HMRDH-Grade B | 1 1/2 | 38 | 52 | 14(2000) | 28(4000) | 2.39 | 560 |
| 2 | 51 | 66 | 14(2000) | 28(4000) | 3.25 | 900 |
| 2 1/2 | 64 | 79 | 14(2000) | 28(4000) | 4.37 | 1200 |
| 3 | 76 | 98 | 14(2000) | 28(4000) | 7.76 | 1200 |
| 3 1/2 | 89 | 113 | 14(2000) | 28(4000) | 9.95 | 1300 |
| 4 | 102 | 127 | 14(2000) | 28(4000) | 12.43 | 1400 |
| 5 | 127 | 153 | 14(2000) | 28(4000) | 15.25 | 1500 |
| 6 | 152 | 178 | 14(2000) | 28(4000) | 18.71 | 1600 |
| HMRDH-Grade C | 1 1/2 | 38 | 55 | 28(4000) | 56(8000) | 3.65 | 560 |
| 2 | 51 | 69 | 28(4000) | 56(8000) | 5.15 | 900 |
| 2 1/2 | 64 | 88 | 28(4000) | 56{8000) | 7.86 | 1200 |
| 3 | 76 | 105 | 28(4000) | 56(8000) | 13.12 | 1200 |
| 3 1/2 | 89 | 121 | 28(4000) | 56(8000) | 16.79 | 1300 |
| 4 | 102 | 137 | 28(4000) | 56(8000) | 21.70 | 1400 |
| 5 | 127 | 164 | 28(4000) | 56(8000) | 28.46 | 1500 |
| 6 | 152 | 197 | 28(4000) | 56(8000) | 44.64 | 1600 |
| HMRDH-Grade D | 2 | 51 | 73 | 25(5000) | 70(10000) | 6.46 | 900 |
| 2 1/2 | 64 | 91 | 35(5000) | 70(10000) | 10.75 | 1200 |
| 3 | 76 | 107 | 35(5000) | 70(10000) | 14.35 | 1200 |
| 3 1/2 | 89 | 123 | 35(5000) | 70(10000) | 18.77 | 1300 |
| 4 | 102 | 139 | 35(5000) | 70(10000) | 23.16 | 1400 |
| 5 | 127 | 171 | 35(5000) | 70(10000) | 38.00 | 1500 |
| 6 | 152 | 200 | 35(5000) | 70(10000) | 48.43 | 1600 |
| HMRDH-Grade E | 2 | 51 | 80 | 52(7500) | 104(15000) | 10.37 | 1000 |
| 2 1/2 | 64 | 101 | 52(7500) | 104(15000) | 17.88 | 1200 |
| 3 | 76 | 120 | 52(7500) | 104(15000) | 24.45 | 1200 |
| 3 1/2 | 89 | 135 | 52(7500) | 104(15000) | 29.33 | 1300 |
| 4 | 102 | 148 | 52(7500) | 104(15000) | 34.24 | 1400 |
| 5 | 127 | 189 | 52(7500) | 104(15000) | 55.39 | 1500 |
| HMRDH-Grade F | 2 | 51 | 82 | 70(10000) | 105(15000) | 11.81 | 1OOO |
| 2 1/2 | 64 | 104 | 70(10000) | 105(15000) | 20.46 | 1300 |
| 3 | 76 | 129 | 70(10000) | 105(15000) | 32.74 | 1300 |
| 3 1/2 | 89 | 144 | 70(10000) | 105(15000) | 39.43 | 1400 |
| 4 | 102 | 158 | 70(10000) | 105(15000) | 45.73 | 1500 |
| HMRDH-Grade G | 2 | 51 | 92 | 105(15000) | 157(22500) | 17.37 | 1000 |
