10mm Braided Hose Resistant Hydrolysis Resistant Non Toxic Abrasion
Proof Outer Layer
Description
A breakthrough for automation, this hose combines hydraulic fluid
transfer (SAE 100R17 core) with shielded power/signal cables (600V,
20A). The armored polyester braid protects against EMI interference
(<1% signal loss), while the oil-resistant construction handles
bio-hydraulic fluids. Used in robotics, CNC machines, and mobile
equipment, it simplifies wiring and reduces downtime.
Specifications

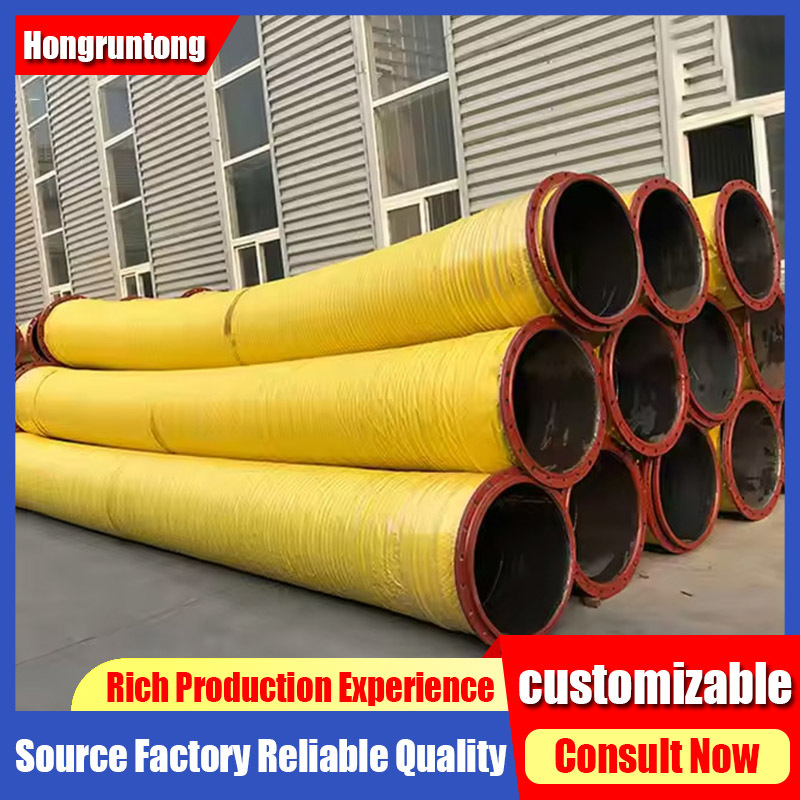

| Name | Armored Hose |
| Inner Liner | Natural Rubber In Various Thicknesses and Compounds |
| Reinforcement | Nylon Cord Fabric with Spring Steel Wire Helix |
| Outer Cover | Black Abrasion and Uv-Resistant Natural Rubber |
| Hose Length | Up to 12m |
| Pressure Rating | 5-40Bar |
| Temperature Rating | -40°C to +80°C |
| Safety Factor | 4:1 |
| Bend Radius | 8 to 10 Times Diameter (Standard) |
| End Fittings | Fixed Flanges, Swivel Flanges, Plain Cut, Cuffed, Swollen, Custom
Fittings |
| Flange Types | D, E, F, ANSI 150, ANSI 300, Custom |
| Materials | Stainless Steel, Hot-Dipped Galvanised, Carbon Steel, Custom Paint |
| Nominal Bore Size | 500mm, 600mm,700mm,750mm,800mm, 850mm, 900mm1000mm,1100mm,1200mm |
| Hose Length | <= 40 m (Tolerance: ±2%) |
| Working Pressure | 2.5 MPa~ 4.0 MPa |
| Working Temperature | -40℃ to +80℃ |
| Tolerable Vacuum | -0.08 MPa |
| Hardness of Wear-resistant Rings | HB 350 ~ HB 500 |
Key Features
Flame Propagation Resistance
Third-party verified to stop flame spread within 3 seconds, meeting
the strictest offshore and petrochemical safety protocols.
Bend Cycle Performance
Rated for 2 million flex cycles at maximum pressure - 4x the
industry standard for comparable products.
Contamination Control
Medical-grade manufacturing processes ensure particulate counts
below ISO Class 5 for critical cleanroom applications.
Rapid Deployment Systems
Pre-engineered kits reduce installation time by up to 75% compared
to field-fabricated solutions.
Applications
► Offshore drilling rigs
► Fuel transfer lines
► Steam and hot oil systems
► LNG cryogenic transfer
► Hydraulic fracturing (fracking) operations
Why Choose Hongruntong Marine?
Corrosion Defense System
Proprietary 316L stainless steel passivation treatment provides 10X
salt spray resistance (5,000hr ASTM B117).
Eco Conscious Production
Zero-discharge manufacturing with 92% material utilization rate and
carbon-neutral logistics options.
Bespoke Reinforcement Options
Customer-selectable armor configurations (wire braid, spiral, mesh)
for exact application needs.
Explosion Proof Engineering
Intrinsically safe designs certified for Zone 0 hazardous areas
(ATEX Category 1G/1D).
RFQ
1. Q: How many impulse cycles can your hoses withstand?
A: Minimum 1 million cycles at 133% working pressure (exceeding ISO
6803 standards).
2. Q: What's your lead time for custom orders?
A: 15 working days for engineered-to-order solutions - 60% faster
than industry average.
3. Q: Do you provide explosion-proof options?
A: Yes, ATEX/IECEx certified designs for Zone 0/1 hazardous areas
with anti-static features.
4. Q: What's your minimum bend radius?
A: As low as 3x hose diameter for high-flex models without flow
restriction.
