Floating Collar Double Shell Structure For Balance And Safety
Secure Bolt Connections
Introduction

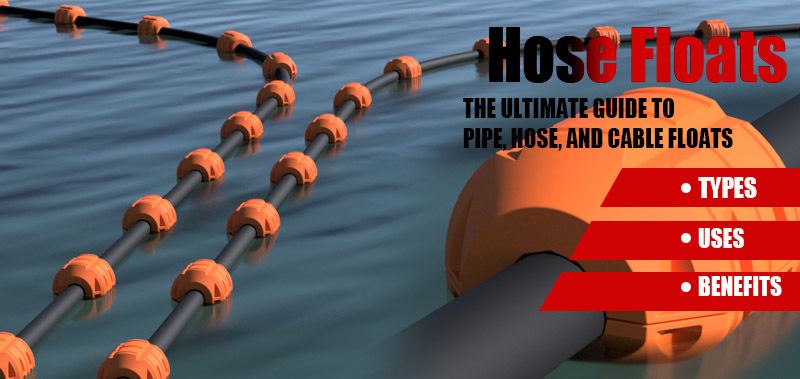

This HDPE Pipe Float is designed for heavy-duty floating pipeline
systems in demanding marine and industrial settings. It features a
double-layer shell made from tough polyethylene and an internal
foam core that prevents sinking in case of damage. The structure
offers exceptional resistance to impact, wear, and environmental
stress. Its compact design ensures excellent load distribution and
long-term performance. Widely used in dredging and offshore oil
transport, this float supports pipelines ranging from 4 to 48
inches in diameter and is available in custom colors and
configurations.
Specifications
| Item | Requirements | Item | Requirements |
| Tensile Strength | ≥13.1MPa | Water Absorption | 1-2g/100cm2 |
| Break Elongation | ≥11.1% | Breaking Strength | 0.08-0.1MPa |
| Impact Strength | ≥32.4KJ/m2 | Breaking Elongation | 4-6% |
| Bending Strength | ≥15.7MPa | Compressive Strength | 0.1-0.24MPa |
Weather Resistance After total aging energy≥3.5GJ/m2 | Break Elongation %≥ | 10 |
| Oxidative Induction Time 200°Cmm≥ | 10 |
| Characteristic |
| * Good flexibility, excellent impact resistance, particularly
suitable for construction in open sea | * Lightweight weight easy to install and handle, low costs for
moving | * High corrosive resistance, 3 times longer life than steel floats | * Higher cost performance than steel float |
| Float I.D. | Float O.D. | Float Length | Thickness | Net Buoyancy |
| mm | mm | mm | mm | KGS/Float |
| 160-180 | 500 | 800 | 4 | 280 |
| 225 | 600 | 700 | 4 | 320 |
| 280 | 700 | 900 | 4 | 450 |
| 340 | 1000 | 1000 | 6 | 500 |
| 410 | 1100 | 1100 | 6 | 550 |
| 460 | 1200 | 1200 | 6 | 1200 |
| 510 | 1300 | 1300 | 7 | 1250 |
| 560 | 1300 | 1500 | 8 | 1360 |
| 610 | 1400 | 1600 | 8 | 1600 |
| 630 | 1480 | 1600 | 8 | 1950 |
| 680 | 1550 | 1800 | 8 | 2200 |
| 730 | 1620 | 1900 | 9 | 2300 |
| 780 | 1700 | 2000 | 9 | 2700 |
| 840 | 1850 | 2100 | 12 | 3200 |
| 890 | 2000 | 2400 | 12 | 4600 |
| 940 | 2040 | 2500 | 13 | 4900 |
| 1150 | 2400 | 2600 | 14 | 6500 |
| NOTE: The floaters customized are available. |
Features
High Buoyancy and Stability
Each hose float is engineered to deliver exceptional buoyancy,
ensuring that even heavy-duty pipelines remain securely afloat. The
design balances weight distribution across the water surface,
minimizing pipe sagging or twisting. This improves operational
safety and efficiency, particularly in long pipeline installations
over water.
Durable HDPE Outer Shell
Constructed from high-density polyethylene (HDPE), the float offers
superior resistance to impact, abrasion, and environmental stress.
This material is widely recognized for its long service life,
chemical resistance, and UV stability, making it ideal for harsh
marine and industrial environments. The tough shell prevents
cracking even under repeated collisions or pressure.
Foam Filled Safety Core
The interior is filled with closed-cell polyurethane or EPS foam,
providing a secondary layer of flotation. In the event the outer
shell is punctured or damaged, the float will continue to function
and support the pipeline, reducing the risk of equipment loss or
downtime. This feature is essential for high-risk or remote
operations.
Quick and Easy Installation

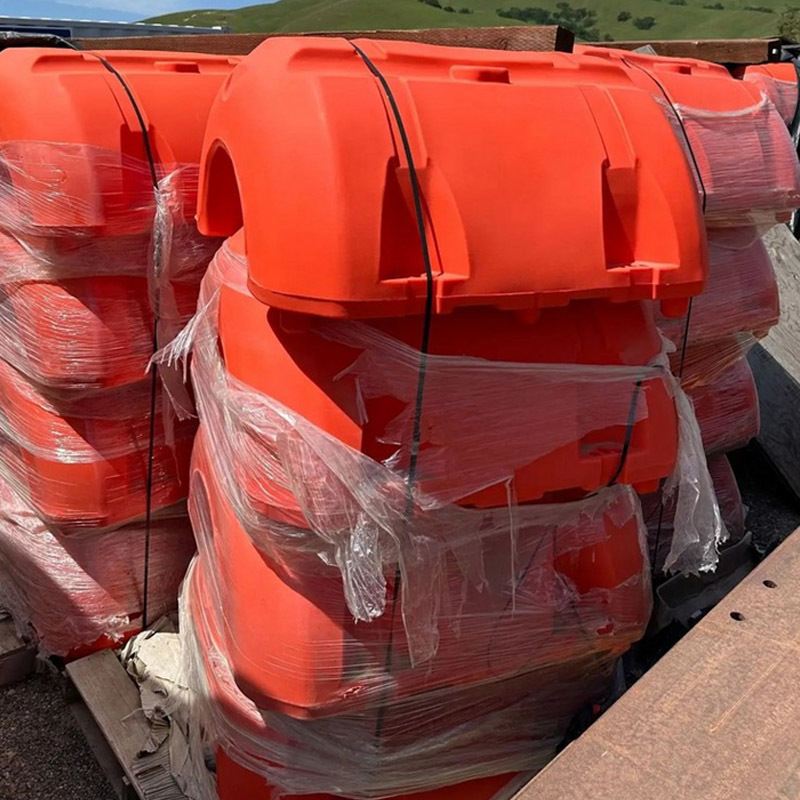

The float consists of two symmetrical halves joined by
high-strength bolts, allowing for rapid installation or removal
without special tools. This design reduces setup time and labor
costs, especially in field conditions. Custom clamping systems are
available to match different pipe diameters, ensuring a tight and
secure fit.
Applications
► Firefighting water supply
► Flood response operations
► Emergency dewatering
► Environmental spill containment
► Floating cable protection
Advantages
Over 30 Years of Manufacturing Expertise
With more than three decades in the industry, we have accumulated
deep technical knowledge and hands-on experience in designing and
producing hose floats. Our long-standing presence ensures
stability, trustworthiness, and a proven track record in delivering
high-performance floating solutions to global clients.
Proven Product Reliability in Harsh Environments
Our products are widely used in some of the world’s toughest
environments—from offshore oil platforms to remote mining sites.
Decades of field testing and real-world use have proven the
durability, stability, and performance of our hose floats under
extreme weather, salinity, and operational stress.
Advanced Production Technology and Quality Control
We utilize state-of-the-art rotational molding equipment and
automated production lines to ensure consistent product quality.
Our strict quality control processes—including buoyancy testing,
pressure resistance checks, and material analysis—guarantee that
every float meets international standards.
Customization Capability for Complex Projects
Thanks to our mature R&D team and flexible manufacturing
systems, we can provide tailor-made hose float solutions for
projects of any scale. From unique float dimensions to custom
buoyancy, color, and branding, we offer comprehensive OEM and ODM
services to meet diverse client needs.
FAQ
1. Q: What materials are your hose floats made of?
A: Our floats are made of UV-stabilized high-density polyethylene
(HDPE) with a foam-filled core for extra safety and buoyancy.
2. Q: What pipe sizes do your hose floats support?
A: We offer floats for pipes ranging from 2 inches to 60 inches in
diameter. Custom sizes are also available.
3. Q: Are your floats suitable for seawater applications?
A: Yes, our floats are designed for marine environments and are
resistant to saltwater, corrosion, and UV radiation.
4. Q: What happens if the float gets damaged?
A: The foam-filled core ensures the float remains buoyant even if
the outer shell is punctured.
