Hose Support Float Multiple Sizes High Visibility Color Low
Maintenance Cost
Introduction

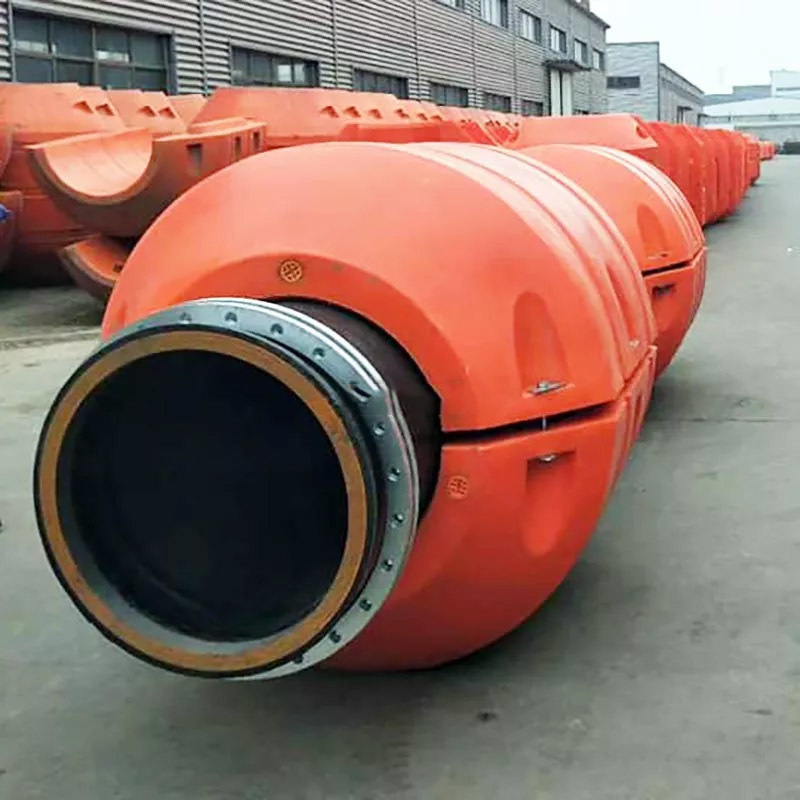

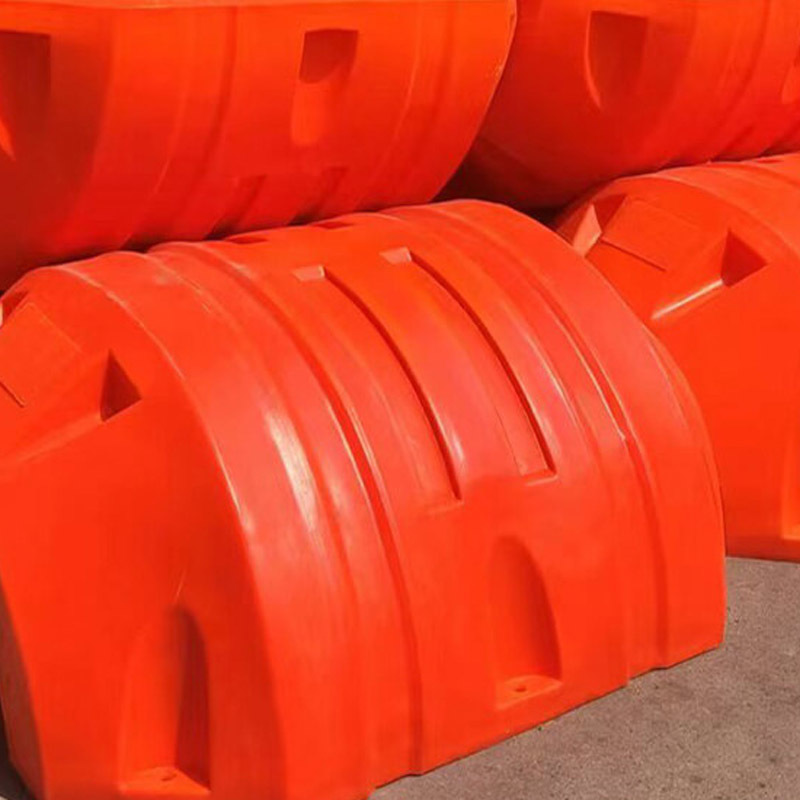

Our General Purpose Hose Float is engineered to provide reliable
buoyancy and long-term durability for marine hoses and pipes in
various environments. Manufactured using high-quality HDPE
(High-Density Polyethylene), it resists UV radiation, saltwater
corrosion, and harsh weather conditions. Each float consists of two
bolted halves, allowing for quick installation and easy
maintenance. Whether used in dredging, mining, or offshore
applications, this float ensures secure pipe positioning and
reduces the risk of damage from sinking or twisting. Its bright
color enhances visibility and safety on open water.
Specifications
Item | Requirements | Item | Requirements |
Tensile Strength | ≥13.1MPa | Water Absorption | 1-2g/100cm2 |
Break Elongation | ≥11.1% | Breaking Strength | 0.08-0.1MPa |
Impact Strength | ≥32.4KJ/m2 | Breaking Elongation | 4-6% |
Bending Strength | ≥15.7MPa | Compressive Strength | 0.1-0.24MPa |
Weather Resistance After total aging energy≥3.5GJ/m2 | Break Elongation %≥ | 10 |
Oxidative Induction Time 200°Cmm≥ | 10 |
Characteristic |
* Good flexibility, excellent impact resistance, particularly
suitable for construction in open sea | * Lightweight weight easy to install and handle, low costs for
moving | * High corrosive resistance, 3 times longer life than steel floats | * Higher cost performance than steel float |
I.D. | O.D. | Length | Thickness | Net Buoyancy |
mm | mm | mm | mm | KGS/Float |
160-180 | 500 | 800 | 4 | 280 |
225 | 600 | 700 | 4 | 320 |
280 | 700 | 900 | 4 | 450 |
340 | 1000 | 1000 | 6 | 500 |
410 | 1100 | 1100 | 6 | 550 |
460 | 1200 | 1200 | 6 | 1200 |
510 | 1300 | 1300 | 7 | 1250 |
560 | 1300 | 1500 | 8 | 1360 |
610 | 1400 | 1600 | 8 | 1600 |
630 | 1480 | 1600 | 8 | 1950 |
680 | 1550 | 1800 | 8 | 2200 |
730 | 1620 | 1900 | 9 | 2300 |
780 | 1700 | 2000 | 9 | 2700 |
840 | 1850 | 2100 | 12 | 3200 |
890 | 2000 | 2400 | 12 | 4600 |
940 | 2040 | 2500 | 13 | 4900 |
1150 | 2400 | 2600 | 14 | 6500 |
*NOTE: The floaters customized are available. |
Key Features
UV and Weather Resistant
Our hose floats are treated with UV stabilizers and designed to
withstand extreme temperatures, humidity, and continuous sunlight
exposure. Whether deployed in tropical marine waters or cold inland
rivers, the float maintains structural integrity and color
stability over time, ensuring reliable year-round operation.
Highly Visible for Marine Safety
Most models are produced in bright orange or yellow, significantly
improving visibility in marine traffic zones. This enhances safety
for surrounding vessels and workers. Optional reflective strips and
numbering can also be added for nighttime operation or tracking
purposes.
Wide Application Compatibility
These floats are suitable for a wide range of applications,
including dredging, offshore oil transport, aquaculture,
environmental cleanup, and mining slurry systems. Their modular
design makes them adaptable to different hose sizes, pressures, and
operating environments, giving users a versatile and scalable
solution.
Customizable Design Options
We offer customized hose float solutions to meet specific project
needs. Options include varying buoyancy levels, dimensions, colors,
logos, and even integrated sensor mounts. This flexibility ensures
the product aligns with your operational standards, branding, and
technical specifications.
Applications
► Dredging pipelines
► Marine hose deployment
► Offshore oil and gas operations
► Slurry transportation in mining
► Aquaculture and fish farming systems
Advantages
Full Material Traceability and Compliance
All raw materials are sourced from certified suppliers and fully
traceable through our ERP system. Our products comply with ISO, CE,
and relevant marine safety regulations, offering clients peace of
mind in terms of both quality and regulatory compliance.
Strong Global Supply Network and Fast Delivery
With well-established logistics partnerships and efficient supply
chain management, we ensure timely delivery worldwide. Our floats
are shipped to over 50 countries, with on-time delivery rates
consistently above 98%, even for large-volume or urgent orders.
Comprehensive Technical Support and After-Sales Service
We provide full lifecycle support—from pre-sales consultation and
technical drawings to on-site installation guidance and after-sales
troubleshooting. Our multilingual team ensures clear communication
and fast response, wherever your project is located.
Innovation Driven and Future-Focused
While we have a strong foundation, we continuously invest in
innovation. Our R&D team actively develops new float designs,
eco-friendly materials, and integrated monitoring technologies to
meet evolving industry demands and environmental standards.
FAQ
1. Q: Can you customize the color or add our logo?
A: Yes, we can provide custom colors and add logos, serial numbers,
or other markings upon request.
2. Q: How are the floats installed on the pipe?
A: Each float consists of two halves secured with stainless steel
bolts around the pipe, allowing quick and easy installation.
3. Q: Are the floats reusable?
A: Yes, they can be removed, inspected, and reused in different
projects if properly maintained.
4. Q: Do you offer test certificates or quality reports?
A: Yes, we provide buoyancy tests, material test reports, and
ISO/CE certification documents upon request.
