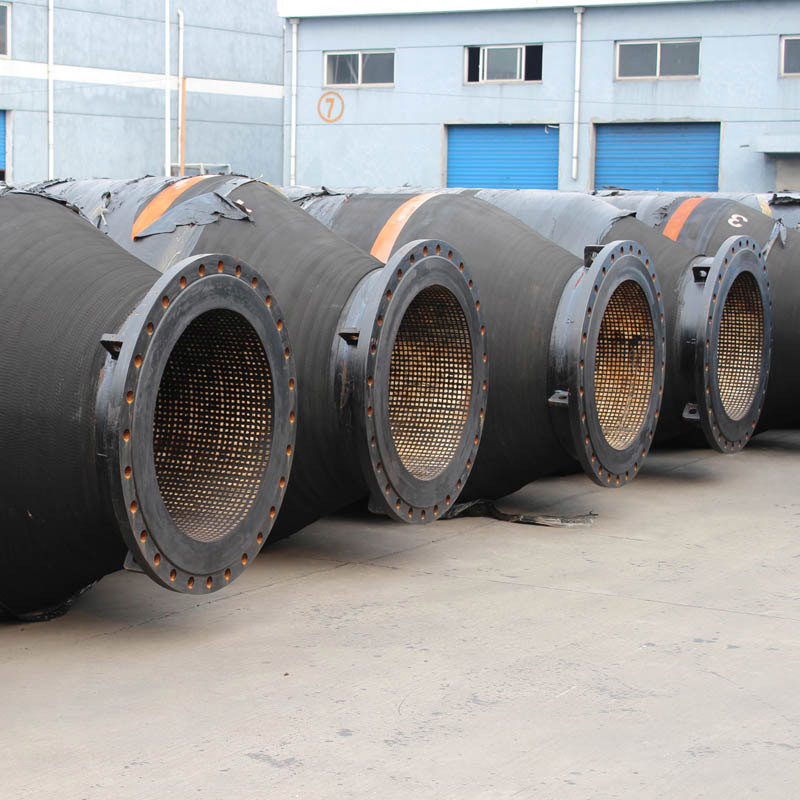

Heavy Duty Ceramic Transfer Hose Dynamic Pressure 15Bar Leak Proof
Flange Connections

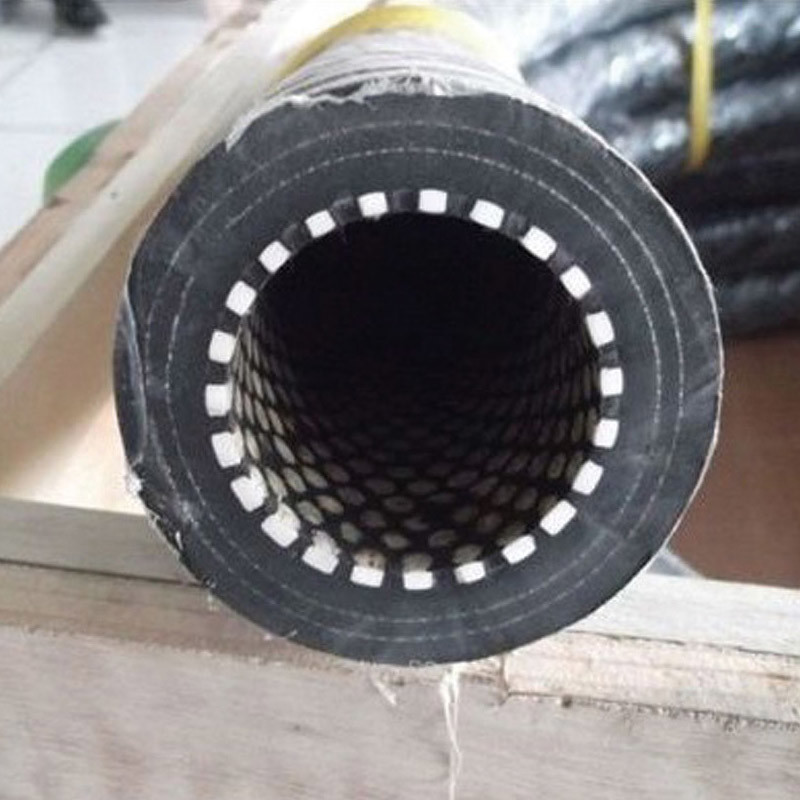

Chemical Resistant Ceramic Lined Hose
A PTFE encapsulated ceramic core provides zero permeability to
acids (HF-resistant grades available), alkalis, and solvents
(compatible with 98% H2SO4, 50% NaOH). The corrosion-proof
fluoropolymer outer jacket resists UV and chemical spills. Features
non-stick surface for viscous media (e.g., polymers, adhesives).
Operational range: -70°C to 260°C. Includes anti-static variants
for flammable media transfer.
Specifications
| Tube | NR, BR, SBR |
| Reinforcement | High Tensile Steel Wire Spiral |
| Cover | NR,CR |
| Working Pressure | < 25 bars |
| Flange Material | Q235B carbon steel paint |
| Working Temperature | -30℃ to +80℃ |
| Safety Factor | 5:1 |
| Application | Installed in between the pump and cutter of the dredger,suction the
slurry.Suction hose&Armored hose with HB steel ring in,suitable
for limestone,granite,coral,and mineraletc. |
| Advantages | High Abrasion Resistance |
| Light Weight |
| Oil and Heat Resistant |
| Flexible,easy to bending |
Inner Diameter | Working Pressure | Burst Pressure | Length | Wall Thickness |
| mm | (Mpa) | (Mpa) | (m) | (mm) |
| 300 | 0.4-1.2 | 3.6 | 1-3 | 34-37 |
| 414 | 0.4-1.2 | 3.6 | 1-3 | 35-37 |
| 560 | 0.4-1.2 | 3.6 | 2-3 | 40-45 |
| 600 | 0.4-1.2 | 3.6 | 2-3 | 40-45 |
| 700 | 0.8-1.5 | 4.5 | 2-3 | 40-45 |
| 800 | 1.2-2.5 | 5.5 | 2-3 | 50-52 |
| 900 | 1.5-2.5 | 7.5 | 2-3 | 55-58 |
| 1000 | 2.0-2.5 | 7.5 | 3-5 | 75-78 |
Unrivaled Features
► Weight Optimized Design
30% lighter than comparable metal pipes with superior
strength-to-weight ratio.
► Non Stick Surface
Prevents adhesion of sticky materials like polymers or food
products.
► Corrosion Free Performance
Eliminates rust and degradation in marine/chemical environments.
► Low Maintenance Requirements
No lining replacements needed, reducing downtime by up to 80%.
Applications
► Coal Ash Conveyance
10x longer lifespan vs. rubber hoses in fly ash systems
► FGD (Flue Gas Desulfurization)
Resists limestone slurries and SO₂ byproducts
► Boiler Feed Lines
Handles 400°C high-pressure water/steam cycles
Why Choose Hongruntong Marine?
► Mega Project Experience
Supplied 15km+ ceramic hose systems for offshore platforms and
mega-mines
► In House Testing Lab
Complete ASTM G65, DIN 50320 wear testing and hydrostatic burst
validation
► Lean Manufacturing
40% faster lead times than industry average through optimized
workflows
► Sustainable Production
Closed-loop water recycling and 92% material utilization rate
FAQ
1. How do I select the right ceramic grade?
Al₂O₃ (90-99.8%): General abrasion resistance
ZrO₂: Extreme acid/thermal shock (e.g., HF, 1500°C)
SiC: For ultra-high purity (semiconductor use)
2. What’s your lead time and warranty?
Standard sizes: 2-3 weeks
Custom designs: 4-6 weeks
Warranty: 5 years on ceramic lining
3. How do you ensure installation reliability?
We provide:
3D CAD mounting drawings
On-site technician support (optional)
Torque specs for all connection types
4. Can these hoses handle vacuum conditions?
Yes. Our helical wire-reinforced models:
Maintain shape under -0.95 bar vacuum
Kink resistant even at full suction
