Heavy Duty Fuel Hose With -40°C To +125°C Temperature Uv And Ozone
Resistant Resistance
Description

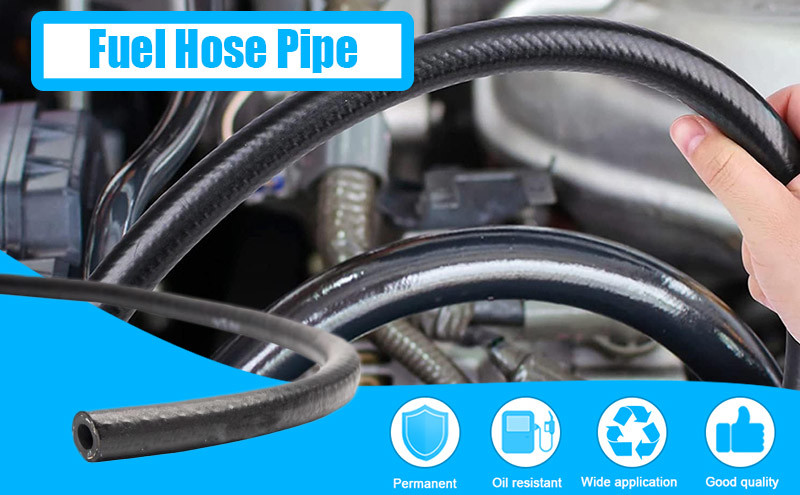

The Rubber Fuel Hose Pipe is designed for safe and efficient fuel
transfer in automotive, marine, and industrial systems. Made from
high-quality synthetic rubber, it offers excellent resistance to
fuel, oil, heat, and weather. The hose remains flexible under
varying temperatures and is reinforced for high-pressure
performance and durability.
Specifications
| Place of Origin | Beijing, China |
| Processing Service | Moulding, Cutting |
| Brand Name | Hongruntong Marine |
| Material | Synthetic Rubber |
| Product Name | Fuel Hose Pipe High Pressure Rubber Hose |
| Color | Black |
| Feature | Durable |
| Size | 1/4"~2" |
| Length | 100m |
| MOQ | 1 |
| Logo | Custom Logo |
| Sample | Free |
| Quality | High Quality |
| Item Code | I.D | O.D | W.P | B.P | L |
| inch | mm | mm | bar | psi | bar | psi | m |
| HMFHP-1 | 3/16" | 5 | 12 | 20 | 300 | 60 | 900 | 100 |
| HMFHP-2 | 1/4" | 6 | 13 | 20 | 300 | 60 | 900 | 100 |
| HMFHP-3 | 5/16" | 8 | 13 | 20 | 300 | 60 | 900 | 100 |
| HMFHP-4 | 3/8" | 10 | 17 | 20 | 300 | 60 | 900 | 100 |
| HMFHP-5 | 1/2" | 13 | 22 | 20 | 300 | 60 | 900 | 100 |
| HMFHP-6 | 5/8" | 16 | 25 | 20 | 300 | 60 | 900 | 50 |
| HMFHP-7 | 3/4" | 19 | 29 | 20 | 300 | 60 | 900 | 50 |
| HMFHP-8 | 1" | 25 | 36 | 20 | 300 | 60 | 900 | 50 |
| HMFHP-9 | 1-1/4" | 32 | 43 | 10 | 100 | 30 | 450 | 50 |
| HMFHP-10 | 1-1/2" | 38 | 50 | 10 | 100 | 30 | 450 | 50 |
Why Choose Our Fuel Hose Pipes?
► Operating temperature range: -40°C to +125°C; short-term heat
exposure up to +150°C without degradation of hose structure.
► Inner wall smoothness (Ra ≤ 0.8 μm) minimizes turbulence and
pressure loss, improving flow rate consistency in long fuel lines.
► Manufactured in accordance with SAE J30 R6/R7/R9 or ISO 7840 Type
A1/B standards, suitable for both automotive and marine-certified
installations.
► Resistant to hydrocarbon vapor permeation: <15 g/m²/day,
helping meet evaporative emission standards in closed-loop fuel
systems.
Applications
► Military and Defense Equipment
Used in mobile fueling units, field generators, and armored
vehicles. Must be rugged, non-permeable, and adaptable to extreme
climates.
► Fuel Tank Venting and Return Lines
Functions as a return or vapor line to manage fuel overflow and
maintain pressure balance. Requires chemical compatibility and heat
resistance.
► Biofuel Production Facilities
Used to move biodiesel or ethanol between tanks and mixing
stations. Must resist swelling and microbial contamination from
organic fuel blends.
► Offshore Platforms
Handles diesel transfer on oil rigs and marine drilling units.
Demands chemical resistance and compliance with offshore fire
safety regulations.
Advantages
► Custom Solutions
We offer OEM and ODM services, tailoring fuel hoses to meet
specific client requirements, including custom lengths, diameters,
and reinforced designs.
► Comprehensive Product Range
Our product line covers various fuel hose sizes (from 5mm to 25mm)
and types, including marine, automotive, industrial, and biofuel
hoses.
► Stringent Quality Control
Each hose undergoes extensive testing, including pressure,
temperature, and chemical resistance tests, to ensure compliance
with global standards.
► Global Certifications
Our fuel hoses are compliant with international standards such as
SAE J30, ISO 7840, and UL94, ensuring safety and reliability
worldwide.
FAQ
► What is the maximum bend radius of a Fuel Hose Pipe?
The bend radius of a Fuel Hose Pipe is typically 4 to 6 times the
hose’s diameter. Exceeding the recommended bend radius can lead to
kinks and reduced flow.
► Can Fuel Hose Pipes be cut to length?
Yes, Fuel Hose Pipes can be easily cut to length using a sharp
blade or hose cutter. Ensure that the cut is clean and square to
prevent leaks at the connection points.
► Are Fuel Hose Pipes UV resistant?
Yes, many Fuel Hose Pipes come with UV-resistant covers that
protect the hose from sun exposure and degradation, making them
ideal for outdoor applications.
► What is the recommended method for installing Fuel Hose Pipes?
Fuel Hose Pipes should be installed with appropriate hose clamps or
quick-connect fittings. Ensure the hose is securely attached to
prevent leaks, and avoid sharp bends or twists during installation.
