Wear Resistant Hose Corrosion Resistant Materials Withstands
Chemical Exposure And Seawater
Description

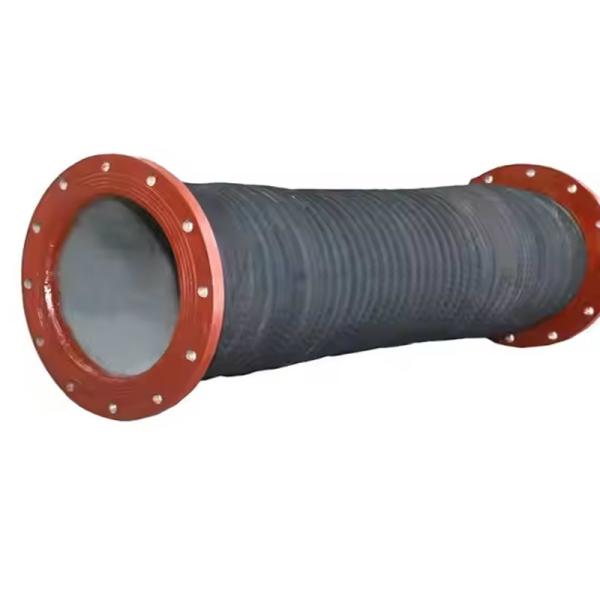

Our lightweight yet ultra strong slurry hoses are built for easy
handling and maximum efficiency in dredging and industrial pumping.
The spiral reinforcement and smooth inner lining prevent kinking
and material buildup, ensuring uninterrupted flow even with dense
slurries. Hongruntong Marine’s hoses excel in portability and
durability, offering a cost-effective solution for demanding
applications without compromising performance.
Specifications
| Construction |
| Wear Layer | NR/SBR, highly wear-resistant |
| Reinforcement Layer | High-tensile fabric cord |
| Outer Cover | NR/SBR/EPDM aging/abrasion/
tropical resistant |
| Specifications |
| Inner Diameter/ID(mm) | 50~1500 |
| Length(mm) | 1000~12000 |
| Working Pressure/WP(Bar) | 5~40 |
| Bursting Pressure/BP (Bar) | 15~120 |
| Temperature Rating | -30°C to +75°C |
| Flange Types | AS2129, ASME B16.5, ASME B16.47, AWWA C207, AS4087, BS EN 1092,
BS3293, JIS B2220, SANS 1123, DIN ISO 7005, custom |
| Safety Factor | 4:1 as standard |
| Inner Liner | NR, NBR |
| Reinforcement | Synthetic fabric and wire helix |
| Outer Cover | UV, ozone, and abrasion-resistant rubber |
| End Connections | Carbon steel (painted, galvanised, custom)
Stainless steel (SS304, SS316)
Exotic alloy |
Inner Diameter | Working Pressure | Burst Pressure | Length | Wall Thickness |
| mm | (Mpa) | (Mpa) | (m) | (mm) |
| 300 | 0.4-1.2 | 3.6 | 1-3 | 34-37 |
| 414 | 0.4-1.2 | 3.6 | 1-3 | 35-37 |
| 560 | 0.4-1.2 | 3.6 | 2-3 | 40-45 |
| 600 | 0.4-1.2 | 3.6 | 2-3 | 40-45 |
| 700 | 0.8-1.5 | 4.5 | 2-3 | 40-45 |
| 800 | 1.2-2.5 | 5.5 | 2-3 | 50-52 |
| 900 | 1.5-2.5 | 7.5 | 2-3 | 55-58 |
| 1000 | 2.0-2.5 | 7.5 | 3-5 | 75-78 |
Why Choose Hongruntong Marine’s Wear Resistant Hose?
High Pressure Endurance
Tested to withstand 300+ PSI (or higher, customizable) without
deformation, ensuring reliable performance in hydraulic and slurry
pumping systems.
Anti-Static Conductive Options
Available with static-dissipative or conductive layers for safe
handling of flammable materials, complying with ATEX and OSHA
standards.
Smooth Bore Interior
Low-friction inner surface minimizes material buildup, reducing
clogging and maintaining optimal flow efficiency.
UV Weather Resistant
Outer covers treated with UV stabilizers prevent cracking and
degradation in outdoor or high-sunlight environments.
Applications
• Hydraulic Fracturing in Oil Fields
• Coal Washing Plants
• Mineral Processing Facilities
• Tunnel Boring Applications
The Hongruntong Advantage
Quick Turnaround Production
Efficient manufacturing processes enable fast delivery times.
Competitive Pricing Structure
Cost-effective solutions without compromising quality.
Global Certification Compliance
Products meet international standards including ISO, DIN, and other
industry certifications.
OEM Partnership Experience
Extensive experience collaborating with major equipment
manufacturers.
FAQ
1. Are these hoses flexible?
Yes, many are designed to remain flexible while resisting kinks and
abrasion.
2. Can they handle high pressure?
Yes, some models are rated for 300+ PSI or higher, depending on
reinforcement.
3. Do they resist chemicals?
Certain variants are chemical-resistant, ideal for oil, acids, or
corrosive fluids.
4. What makes these hoses more durable?
Multi-layer construction, abrasion-resistant linings, and
reinforced covers.
