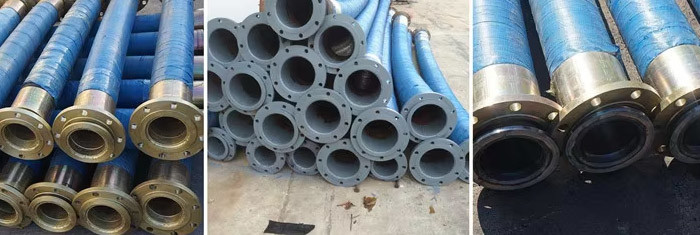

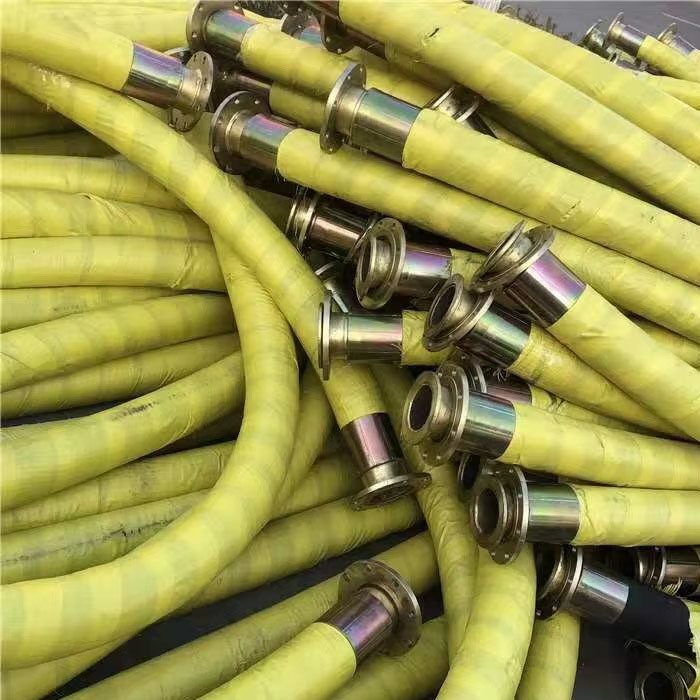

Rotary Drilling Hose Product Introduction
A Rotary Drilling Hose is an essential component in oilfield
drilling operations, primarily used to transfer drilling mud at
high pressure. Constructed with premium synthetic rubber and
reinforced with multiple steel wire layers, it withstands extreme
pressures and challenging environments. This hose is resistant to
oil, heat, and abrasion, ensuring durability and long-term
performance. It meets API 7K requirements, guaranteeing safety and
reliability for both land and offshore drilling rigs. The Rotary
Drilling Hose is available in various pressure ratings and sizes to
suit different operational needs, providing a stable and efficient
solution for drilling fluid transportation.
| Tube | Modified nitrile, black, specifically engineered for the effective
handling of abrasive, corrosive substances, and oil drilling mud. |
| Reinforcement | Composite construction featuring multiple layers of textile fabric
and steel cable, with a layer of rubber positioned between the
cable layers for enhanced performance. |
| Cover | Black modified nitrile with a specially engineered ultra-abrasion
cover, designed to provide exceptional resistance to abrasion,
corrosion, cutting, gouging, oil, and weather conditions. |
| Coupling | Swaged couplings,full range of couplings are available,such as
hammer union,flanges,hubs,male thread etc |
| Certification | API 7K-0376/ISO14693 |
| Temperature | -40°C to +82°C( -104°F to +180°F) |
| Options | Accessories such as safety clamps and hose lift eyes are available
upon request |
| Test | Each hose is tested at 22500psi for 15 minutes. Pressure test
graph, test certificate and letter of conformance are issued for
each hose. |
Key Features
Anti Kink Technology
Built with structural integrity to prevent kinking under
high-pressure conditions.
High Burst Pressure
Offers a significantly high burst pressure rating for added safety
and reliability.
Low Pressure Loss
Optimized internal structure ensures smooth fluid flow with minimal
resistance.
Corrosion Resistance
Protective layers safeguard against corrosion caused by harsh
drilling environments.
Engineered for the Toughest Applications
Geothermal Drilling
Used in geothermal energy projects to circulate high-temperature
drilling fluids in extreme heat conditions.
Directional Drilling
Provides flexibility and durability for horizontal and directional
drilling in complex well formations.
Ultra Deep Well Drilling
High pressure-resistant hoses facilitate drilling in ultra-deep
wells where extreme conditions demand superior performance.
High Temperature Drilling Environments
Engineered to withstand extreme heat in volcanic or
high-temperature drilling sites.
What Sets Us Apart
API 7K Certification Compliance
Our hoses meet or exceed API 7K standards for safety and
performance in oil and gas applications.
Customizable Specifications
Tailored solutions in size, pressure rating, and end fittings to
meet diverse client needs.
High-Pressure Abrasion Resistance
Engineered for extreme conditions with multiple layers of
high-tensile steel wire reinforcement.
Oil Chemical Weather Resistance
Our hoses perform reliably in harsh environments, including
offshore and desert conditions.
| Model | I.D. | O.D. | W.P. | T.P. | Weight | B.R. |
| inch | mm | mm | mpa(psi) | mpa(psi) | kg／m | mm |
| HMRDH-Grade A | 1 1/2 | 38 | 51 | 11(1500) | 22(3000) | 2.19 | 560 |
| 2 | 51 | 65 | 11(1500) | 22(3000) | 3.03 | 900 |
| 2 1/2 | 64 | 78 | 11(1500) | 22(3000) | 3.95 | 1200 |
| HMRDH-Grade B | 1 1/2 | 38 | 52 | 14(2000) | 28(4000) | 2.39 | 560 |
| 2 | 51 | 66 | 14(2000) | 28(4000) | 3.25 | 900 |
| 2 1/2 | 64 | 79 | 14(2000) | 28(4000) | 4.37 | 1200 |
| 3 | 76 | 98 | 14(2000) | 28(4000) | 7.76 | 1200 |
| 3 1/2 | 89 | 113 | 14(2000) | 28(4000) | 9.95 | 1300 |
| 4 | 102 | 127 | 14(2000) | 28(4000) | 12.43 | 1400 |
| 5 | 127 | 153 | 14(2000) | 28(4000) | 15.25 | 1500 |
| 6 | 152 | 178 | 14(2000) | 28(4000) | 18.71 | 1600 |
| HMRDH-Grade C | 1 1/2 | 38 | 55 | 28(4000) | 56(8000) | 3.65 | 560 |
| 2 | 51 | 69 | 28(4000) | 56(8000) | 5.15 | 900 |
| 2 1/2 | 64 | 88 | 28(4000) | 56{8000) | 7.86 | 1200 |
| 3 | 76 | 105 | 28(4000) | 56(8000) | 13.12 | 1200 |
| 3 1/2 | 89 | 121 | 28(4000) | 56(8000) | 16.79 | 1300 |
| 4 | 102 | 137 | 28(4000) | 56(8000) | 21.70 | 1400 |
| 5 | 127 | 164 | 28(4000) | 56(8000) | 28.46 | 1500 |
| 6 | 152 | 197 | 28(4000) | 56(8000) | 44.64 | 1600 |
| HMRDH-Grade D | 2 | 51 | 73 | 25(5000) | 70(10000) | 6.46 | 900 |
| 2 1/2 | 64 | 91 | 35(5000) | 70(10000) | 10.75 | 1200 |
| 3 | 76 | 107 | 35(5000) | 70(10000) | 14.35 | 1200 |
| 3 1/2 | 89 | 123 | 35(5000) | 70(10000) | 18.77 | 1300 |
| 4 | 102 | 139 | 35(5000) | 70(10000) | 23.16 | 1400 |
| 5 | 127 | 171 | 35(5000) | 70(10000) | 38.00 | 1500 |
| 6 | 152 | 200 | 35(5000) | 70(10000) | 48.43 | 1600 |
| HMRDH-Grade E | 2 | 51 | 80 | 52(7500) | 104(15000) | 10.37 | 1000 |
| 2 1/2 | 64 | 101 | 52(7500) | 104(15000) | 17.88 | 1200 |
| 3 | 76 | 120 | 52(7500) | 104(15000) | 24.45 | 1200 |
| 3 1/2 | 89 | 135 | 52(7500) | 104(15000) | 29.33 | 1300 |
| 4 | 102 | 148 | 52(7500) | 104(15000) | 34.24 | 1400 |
| 5 | 127 | 189 | 52(7500) | 104(15000) | 55.39 | 1500 |
| HMRDH-Grade F | 2 | 51 | 82 | 70(10000) | 105(15000) | 11.81 | 1OOO |
| 2 1/2 | 64 | 104 | 70(10000) | 105(15000) | 20.46 | 1300 |
| 3 | 76 | 129 | 70(10000) | 105(15000) | 32.74 | 1300 |
| 3 1/2 | 89 | 144 | 70(10000) | 105(15000) | 39.43 | 1400 |
| 4 | 102 | 158 | 70(10000) | 105(15000) | 45.73 | 1500 |
| HMRDH-Grade G | 2 | 51 | 92 | 105(15000) | 157(22500) | 17.37 | 1000 |
FAQ
1. What materials are used in the inner tube of a Rotary Drilling
Hose?
High grade synthetic rubber, resistant to oil, heat, and abrasion.
2. What kind of reinforcement is used in Rotary Drilling Hoses?
Multiple layers of high-tensile steel wire for strength and
pressure resistance.
3. Specifications Performance
What sizes are available for Rotary Drilling Hoses?
Common sizes range from 2 inches to 6 inches in diameter, with
various lengths available.
4. What is the burst pressure of a Rotary Drilling Hose?
Typically 2.5 to 4 times the working pressure for safety reasons.
