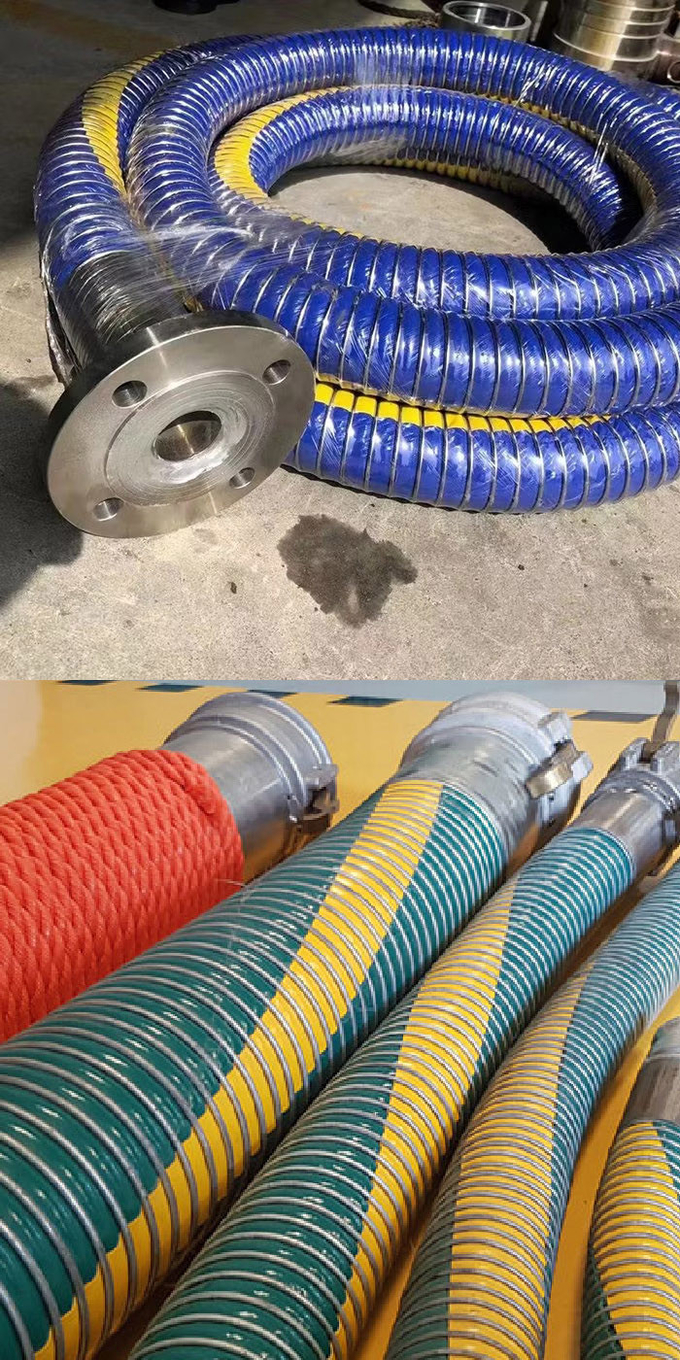

Composite Hose Product Introduction
Composite Hose Pipes are lightweight yet heavy-duty hoses, designed
to handle aggressive chemicals, fuel oils, and industrial fluids
with maximum safety and flexibility. Constructed using multiple
thermoplastic layers reinforced with high-tensile fabric and metal
wire helix, they provide superior strength, pressure resistance,
and excellent chemical compatibility. Their anti-static properties
and leak proof construction make them ideal for hazardous material
transfer in refineries, chemical plants, and offshore loading.
Unlike traditional rubber hoses, Composite Hose Pipes offer easier
handling, better temperature resistance, and reduced maintenance
costs. Available in various diameters and fittings, they ensure
efficient and secure fluid transportation across industries.
Key Advantages of Hongruntong Composite Hoses
High Pressure Vacuum Resistance
Withstands high internal pressures and vacuum suction forces,
preventing collapse or deformation under extreme conditions.
Wide Temperature Range
Operates efficiently in both high and low temperatures, making it
suitable for various industrial applications.
UV Weather Resistant
Designed to endure long-term exposure to UV rays, harsh weather,
and outdoor conditions without degradation.
Customizable Configurations
Available in various sizes, lengths, materials, and end fittings to
meet specific operational requirements.
Why Hongruntong Marine?
Lightweight High Flexibility
Compared to traditional rubber and metal hoses, our composite hoses
are lighter and more flexible, making them easier to handle and
install.
High Pressure Temperature Resistance
Engineered for extreme working conditions, our hoses can withstand
high pressure and temperature fluctuations, ensuring safe and
stable operation.
Leak Proof Safe Design
The multiple-layer construction with reinforced sealing technology
minimizes the risk of leaks, ensuring maximum safety for hazardous
materials.
Strong R D and Innovation Capabilities
Our dedicated research and development team continuously improves
hose performance, introduces new designs, and enhances product
efficiency.
Applications of Hongruntong Composite Hoses
Firefighting and Emergency Response
Applied for transporting foam and water-based firefighting agents
in emergency situations.
Desalination Plants
Used in seawater intake and brine discharge applications in
desalination facilities.
Mining Industry
Transfers slurries, process water, and chemical reagents in mineral
extraction and refining operations.
Bitumen and Asphalt Transfer
Suitable for handling high temperature viscous materials like
bitumen and asphalt in road construction and industrial
applications.
Why Wait? Upgrade to Hongruntong Composite Hoses Today.
Ready to enhance your operations with superior composite hoses?
Hongruntong Marine is here to provide you with high quality
solutions that keep your business running smoothly. Reach out to us
today to discuss your specific needs or to place an order.
Specifications
| Product Name | Composite Hose |
| Inner Wire & Outer Wire | Stainless Steel 316 Stainless Steel 304 Galvanised Carbon Steel Polypropylene Coated Steel Aluminium |
| Inside Lining | Polypropylene P.T.F.E / E.C.T.F.E Poly-amide |
| Layers | Polypropylene Fabrics Polypropylene Films Poly-amide Fabrics Poly-amide Films Polyester Fabrics Polyester Films BOPP Films |
| Outer Cover | PVC Coated Polyester Poly-amide Polypropylene P.T.F.E |
| Max. Elongation | 10% on proof pressure |
| Min. Burst Pressure | 5 x working pressure (Safety factor 5:1) |
| Temperature Range | -30℃ to +100℃ |
| Electrical Resistance | ≤2.5 Ohm/m for under 50mm (2”) ≤1.0 Ohm/m for over 50mm (2”) |
| OEM, ODM | Accept |
| Standard | EN13766, EN13765 |
| Model | Dimensions | Working Pressure | Safety Factor | Bending Radius | Weight | Length |
| Composite | [mm] | [inch] | [bar] | [psi] | [kg] | [m] |
| HM-CHP20 | 20 | 3/4" | 16 | 230 | 5:1 | 80 | 0.8 | 40 |
| HM-CHP25 | 25 | 1" | 16 | 230 | 5:1 | 100 | 1 | 40 |
| HM-CHP32 | 32 | 11/4" | 16 | 230 | 5:1 | 125 | 1.3 | 40 |
| HM-CHP40 | 40 | 11/2" | 16 | 230 | 5:1 | 140 | 1.5 | 40 |
| HM-CHP50 | 50 | 2" | 16 | 230 | 5:1 | 180 | 2.5 | 40 |
| HM-CHP65 | 65 | 21/2" | 16 | 230 | 5:1 | 200 | 3.3 | 40 |
| HM-CHP80 | 80 | 3" | 16 | 230 | 5:1 | 260 | 4 | 40 |
| HM-CHP100 | 100 | 4" | 16 | 230 | 5:1 | 380 | 6.8 | 40 |
| HM-CHP125 | 125 | 5" | 16 | 230 | 5:1 | 440 | 9.2 | 40 |
| HM-CHP150 | 150 | 6" | 16 | 230 | 5:1 | 500 | 13.2 | 40 |
| HM-CHP200 | 200 | 8" | 16 | 230 | 5:1 | 750 | 18 | 40 |
| HM-CHP250 | 250 | 10" | 16 | 230 | 5:1 | 900 | 26 | 25 |
| *Note: Various sizes can be customized according to the
requirements. |
FAQ
1. How should composite hoses be stored?
Store in a dry, cool area, away from direct sunlight
Avoid excessive bending to prevent structural damage
Perform regular inspections to check for cracks or damage
2. What is the typical lifespan of a composite hose?
The lifespan depends on usage and working conditions, but typically
ranges from 3 to 5 years with proper maintenance.
3. Can composite hoses be cut to a specific length?
Yes, but cutting must be performed by trained professionals using
proper tools, followed by reinstalling the correct fittings and
seals.
4. Can composite hoses handle high temperature fluids?
Composite hoses are generally rated for temperatures below 100°C.
For higher temperatures, special heat-resistant materials are
required.
