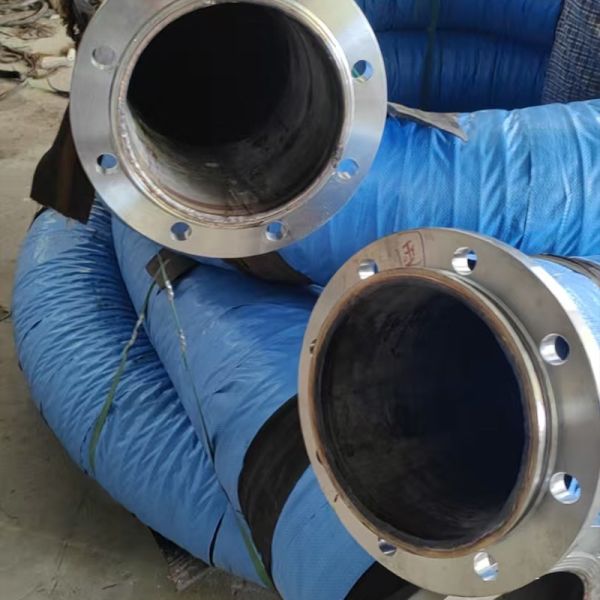

Discharge Hose Tube Reinforced Rubber Abrasion Resistant With Long
Service Life
Description
Built to withstand extreme internal pressure surges and resist
chemicals, this hose is the definitive choice for high-pressure
cleaning, water blasting, and industrial washdown. Its smooth bore
ensures minimal pressure loss from the pump to the nozzle, directly
translating to higher cleaning efficiency and lower energy costs.
( Case: A German automotive plant using standard hoses for factory
washdown faced frequent failures and pressure drops at the nozzle.
After adopting our High-Pressure Hose, they achieved a 15% increase
in cleaning efficiency due to consistent pressure, and hose-related
downtime was eliminated for over 18 months. )
Specifications
| Name | Discharge Hose Pipe |
| Nominal Bores | From 150mm (6”) to 1200mm (47”) |
| Length | Up to 11.8 Metres (38ft) |
| Working Pressure | Up to 20 bar |
| Safety Factor | 4:1 |
| Flange Options | Fixed, Swivel, Double-Flange and Built-in-Nipple Designs |
| Features | Heavy-Duty Robust Construction Designed to Handle Large Dredged
Particles
Hoop-Ring or Spring-Wire-Helix Construction for Flexibility or Full
Vacuum During Service
Tailor-Made Designs, Including Self-Floater, Suction Dredge Hose
and Flexible Discharge Hoses
Suitable for Slurries Containing Rock, Shell and Coral |
| Model | I.D. | W.P. | B.P. | Min Bending Radius | Wear Layer
Thickness | Length |
| inch | mm | bar | bar | mm | mm | m |
| HM-DHP150 | 6 | 150 | 5-10 | 15-30 | 8D | 10-20 | 11.8 |
| HM-DHP200 | 8 | 200 | 5-10 | 15-30 | 8D | 10-20 | 11.8 |
| HM-DHP250 | 10 | 250 | 5-10 | 15-30 | 8D | 10-20 | 11.8 |
| HM-DHP300 | 12 | 300 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-DHP350 | 14 | 350 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-DHP400 | 16 | 400 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-DHP450 | 18 | 450 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-DHP500 | 20 | 500 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-DHP600 | 24 | 600 | 15-20 | 45-60 | 15D | 20-30 | 11.8 |
| HM-DHP650 | 26 | 650 | 15-20 | 45-60 | 15D | 20-30 | 11.8 |
| HM-DHP700 | 28 | 700 | 20-25 | 60-75 | 15D | 30-50 | 11.8 |
| HM-DHP750 | 30 | 750 | 20-25 | 60-75 | 15D | 30-50 | 11.8 |
| HM-DHP800 | 32 | 800 | 20-25 | 60-75 | 15D | 30-50 | 11.8 |
| HM-DHP850 | 34 | 850 | 20-25 | 60-75 | 15D | 30-50 | 11.8 |
| HM-DHP900 | 36 | 900 | 25-30 | 75-90 | 15D | 30-50 | 11.8 |
| HM-DHP1000 | 40 | 1000 | 25-30 | 75-90 | 15D | 50-75 | 11.8 |
| HM-DHP1100 | 44 | 1100 | 25-30 | 75-90 | 15D | 50-75 | 11.8 |
Product Features
High Pressure Reinforcement
Multiple high-tensile synthetic fiber braids (e.g., polyester)
provide extremely high burst pressure ratings (e.g., up to 2500 PSI
and beyond), ensuring safety and reliability during intense
cleaning operations.
Smooth Non Stick Bore
A seamless, thermoplastics or EPDM inner tube minimizes friction
and turbulent flow, ensuring maximum pressure and velocity are
delivered to the cleaning nozzle for faster, more effective
results.
Oil Chemical Resistant Cover
The outer cover is made from a specialized compound that resists
degradation from oils, greases, solvents, and common industrial
cleaning chemicals, preventing cover softening and cracking.
Exceptional Flexibility Kink Resistance
Designed with a focus on maneuverability, the hose remains flexible
even in cold conditions and under high pressure, reducing operator
fatigue and preventing dangerous pressure spikes caused by kinking.
Applications
Industrial Cleaning
High-pressure water blasting for removing rust, paint, and deposits
from machinery, tanks, and surfaces; routine factory washdown.
Agriculture
High-pressure sprayers for cleaning milking parlors, animal pens,
and heavy farm machinery to maintain hygiene standards.
Firefighting Emergency Response
Suitable as a delivery hose for high-pressure pumps on industrial
firefighting units and for disaster relief washdown operations.
Why Choose Hongruntong Marine?
Safety First Manufacturing
We understand the dangers of high-pressure equipment. Our hoses are
rigorously tested to exceed their rated working pressure, providing
a critical safety margin for operators.
Focus on Operational Efficiency
We don't just sell a hose; we provide a tool that enhances your
entire cleaning process. Our hoses' low pressure drop and
reliability directly contribute to faster job completion and lower
operating costs.
Customization Capability
We can manufacture hoses in various lengths, with different end
fittings (JIC, NPT, Storz), and with specific chemical resistance
properties to match your exact equipment and fluid requirements.
Direct Factory Support
As a manufacturer, we can provide detailed technical data sheets,
pressure rating graphs, and direct engineering support to help you
integrate our hoses seamlessly into your operations.
FAQ
1. Q: What is the difference between a water blasting hose and a
standard pressure washer hose?
A: Our industrial-grade hoses feature higher-quality
reinforcements, thicker covers, and superior chemical resistance,
making them far more durable and safe for continuous professional
use compared to consumer-grade hoses.
2. Q: Is the hose suitable for use with hot water and steam?
A: Our standard high-pressure hose is rated for hot water up to
85°C (185°F). For true steam cleaning applications, we offer a
dedicated steam hose with different construction.
3. Q: How do I ensure the hose lasts as long as possible?
A: Always release pressure from the hose after use, avoid dragging
it over sharp edges, and store it coiled in a cool, dry place away
from direct sunlight.
4. Q: What is the maximum working pressure for this hose?
A: The maximum working pressure varies by model, diameter, and
reinforcement. Standard hoses range from 150 PSI (10 bar) for
general use to over 1500 PSI (100 bar) for high-pressure
applications. Always check the specific product's data sheet for
its exact rating.
